KILN INQUIRY
CRAFT/TEST DLH11-DX - L&L Kilns
Doll & Test Kiln
KEY SPECS
Small (0.5 cubic feet)
Genesis Mini Touchscreen Control
Cone 10, 2350F, 1290C
$2,105*
ESTIMATED LEAD TIME: 10 to 12 Weeks
Model DLH11-DX Doll/Test Kiln with a Genesis Mini Touchscreen Controller. Kiln comes with hard ceramic element holders, a protected thermocouple, a strong solid-top stand, and a solid peephole plug. 11" Diam x 9" High (0.5 cu ft). 2-1/2" K23 brick. High Volts - 208, 220, and 240 volt versions. Cone 10 all voltages. Includes NEMA 6-20 plug. C-MET-us listed in the USA & Canada.
*Taxes and freight will be added to this cost. Please contact us for final pricing.
Includes Genesis Touchscreen Multi-Zone Control
DETAILS
Insulation: 2-1/2" K23 Firebrick
Sections: One section
Inside Dimensions: 11.00" Diameter x 9.00" High (27.94 cm Diameter x 22.86 cm High)
Outside Dimensions: 24.00" Wide x 21.00" Deep x 40.00" High (60.96 cm Wide x 53.34 cm Deep x 101.6 cm High)
Weight: 95 lbs (43 kg))
SPECIFICATIONS
CONTACT US
Have a quick question? Contact us directly and we’ll get back to you shortly.
ORDERING
We want to ensure you get the correct kiln. We will contact you directly to confirm your order details. The final price, including taxes and freight, will be calculated. The order will not be confirmed until payment is recieved in full.
FEATURES
Proprietary Reflective Ceramic Coating
L&L coats the firebrick with a proprietary reflective ceramic coating which penetrates, binds and hardens the surface of the entire interior of the kiln. This will reduce brick dusting, makes the kiln interior more durable and helps improve energy efficiency.
Genesis Touch-screen Controller
The Genesis Touch-screen features Dynamic Zone Control. It is like having three controls in one. The Genesis Touch-screen separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three separate heating zones even as the kiln is heating up. Kiln temperatures are automatically evened out to within 1/2 cone or better top to bottom. There is no manual intervention with input switches. There are separate thermocouples (heat sensors) and contactors (power controls) for each of the three zones. You have the ability to adjust the "lag" or differential between zones, (anywhere from 5 degrees to 99 degrees).

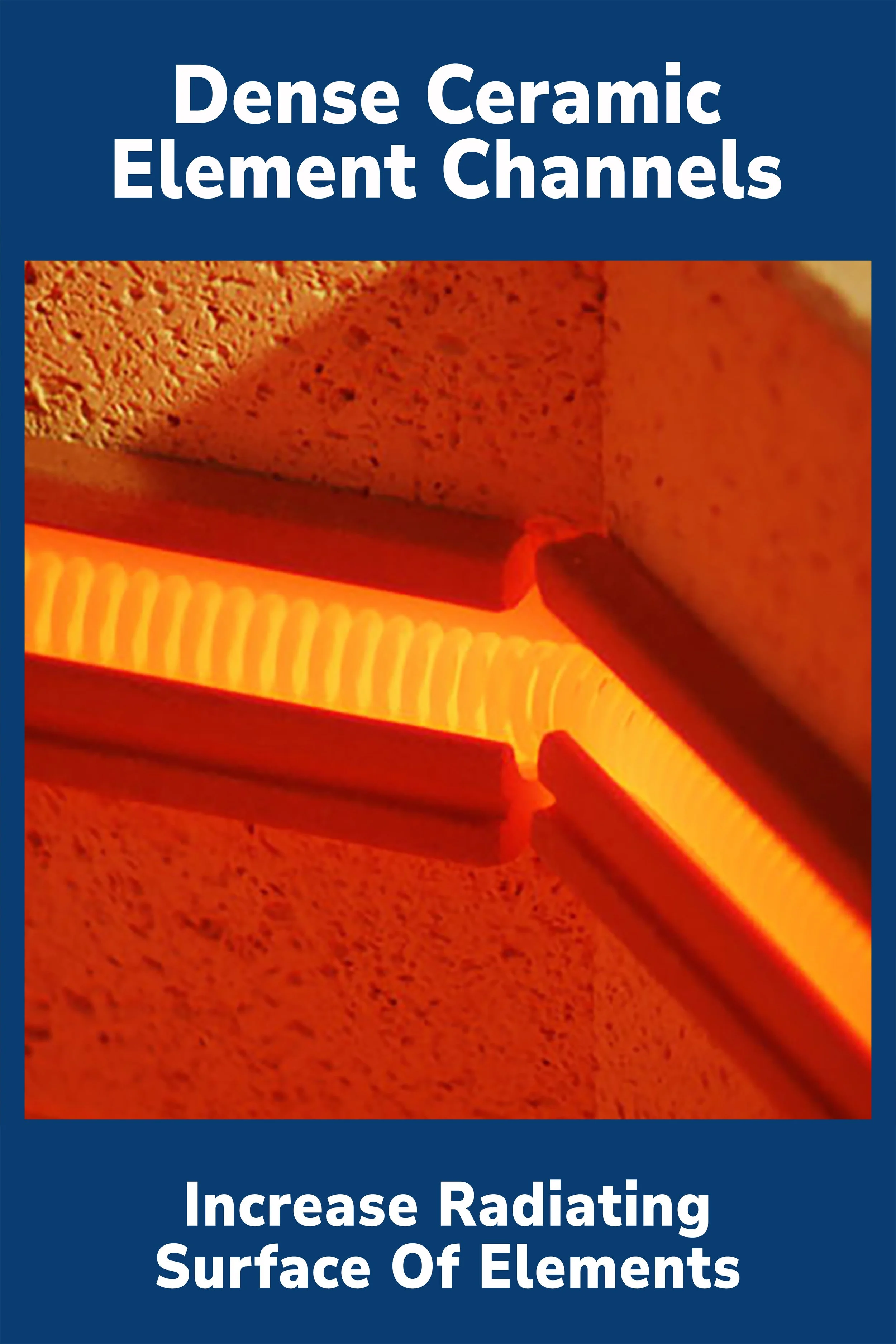

L&L Ceramic Element Holders
L&L Kiln's patented hard ceramic element holders protect your kiln. The ceramic element holder protects the soft fragile firebrick. Replacing elements repeatedly does not damage the brick. Elements don't sag or fall out of broken grooves. You do not need metal pins to hold elements into broken grooves. Customers often say their L&L kilns look new after 30 years of hard use!
OPTIONAL ADD-ONS
Rolling Stand Kit for 6 Sided Kiln
Fully supports the entire kiln bottom (not just the edges)
Corrosion-resistant, heavy-gauge aluminized steel lasts longer
Guideposts to keep kiln centered - each size stand-top fitted for matching kiln models, legs are universal
Optional Shelf Kit Includes:
Part Number: H-D-KDHL/00
Includes: Two 9" Full Round Shelves (3/8" thick) and Kit includes four each of 1/2", 1", 2", & 4" high 1-1/2" Square Ceramic Posts
Price: $134.00
