CRAFT/TEST PLUG-N-FIRE - L&L Kilns
8" X 8" X 9" home and test kiln
KEY SPECS
Small (0.33 cubic feet)
Genesis Mini Touchscreen Control
Cone 10, 2350F, 1290C
$1,750*
ESTIMATED LEAD TIME: 10 to 12 Weeks
Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller
8" Square x 9" High (0.33 cu ft)
This kiln can fire to Cone 10 on a standard 15-amp circuit, and draws only 12.5 amps
Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick

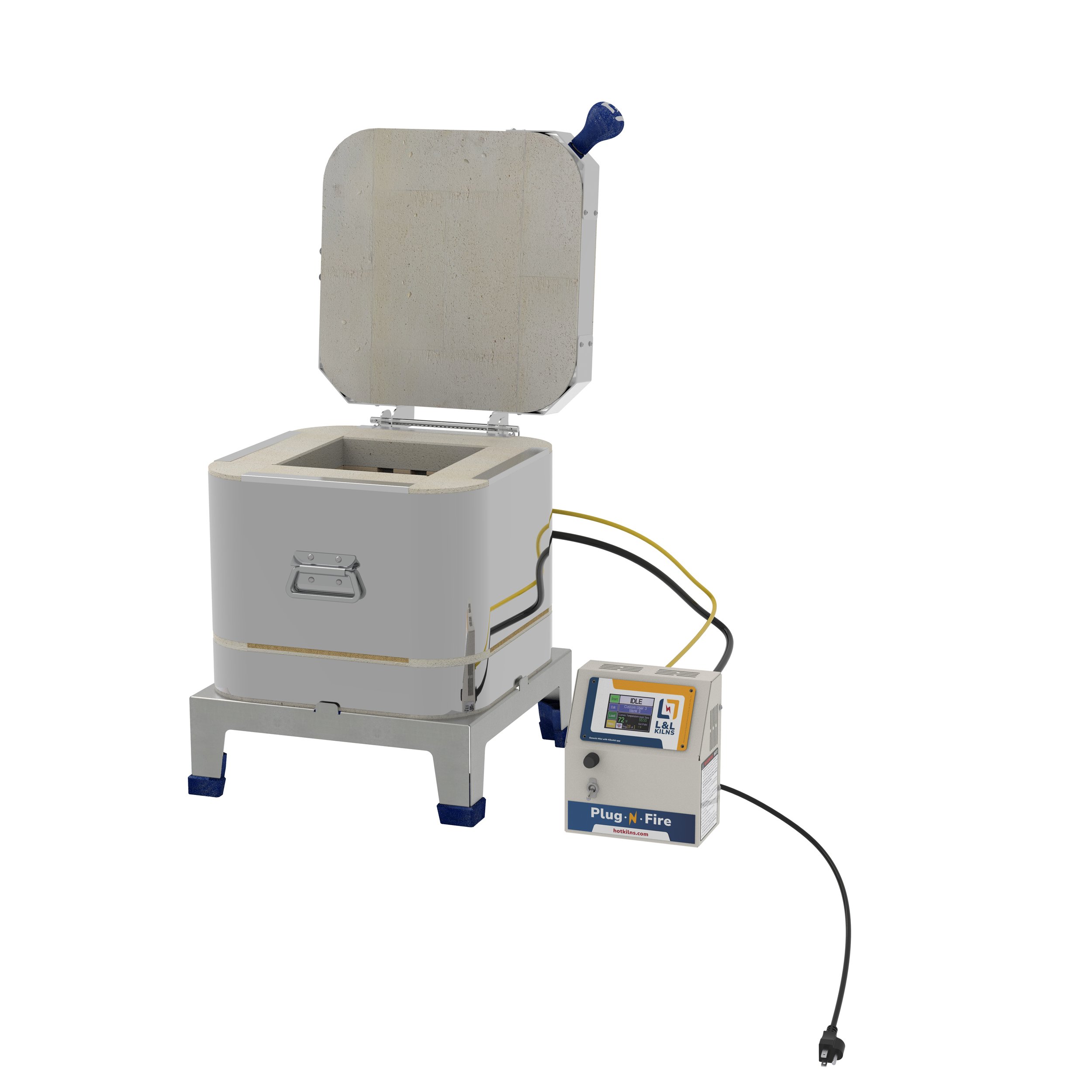

Kiln plugs into a separate control panel with power and thermocouple wire jack
Door safety switch shuts off power to the elements when the door is opened
Hard ceramic element channels
Includes one 7" by 7" by 3/8" shelf and three 3" posts
Not yet listed to UL499
On-Line Instructions
*Taxes and freight will be added to this cost. Please contact us for final pricing.
Includes Genesis Touchscreen Multi-Zone Control
DETAILS
Insulation: 2-1/2" K23 Firebrick & 1" 1900 Back-Up Insulation on sides, 3" K23 Firebrick on top & bottom
Sections: One section
Inside Dimensions: 8.00" Wide x 8.00" Deep x 9.00" High (20.32 cm Wide x 20.32 cm Deep x 22.86 cm High)
Outside Dimensions: 16.00" Wide x 19.00" Deep x 20.00" High (40.64 cm Wide x 48.26 cm Deep x 50.8 cm High)
Weight: 77 lbs (35 kg)
