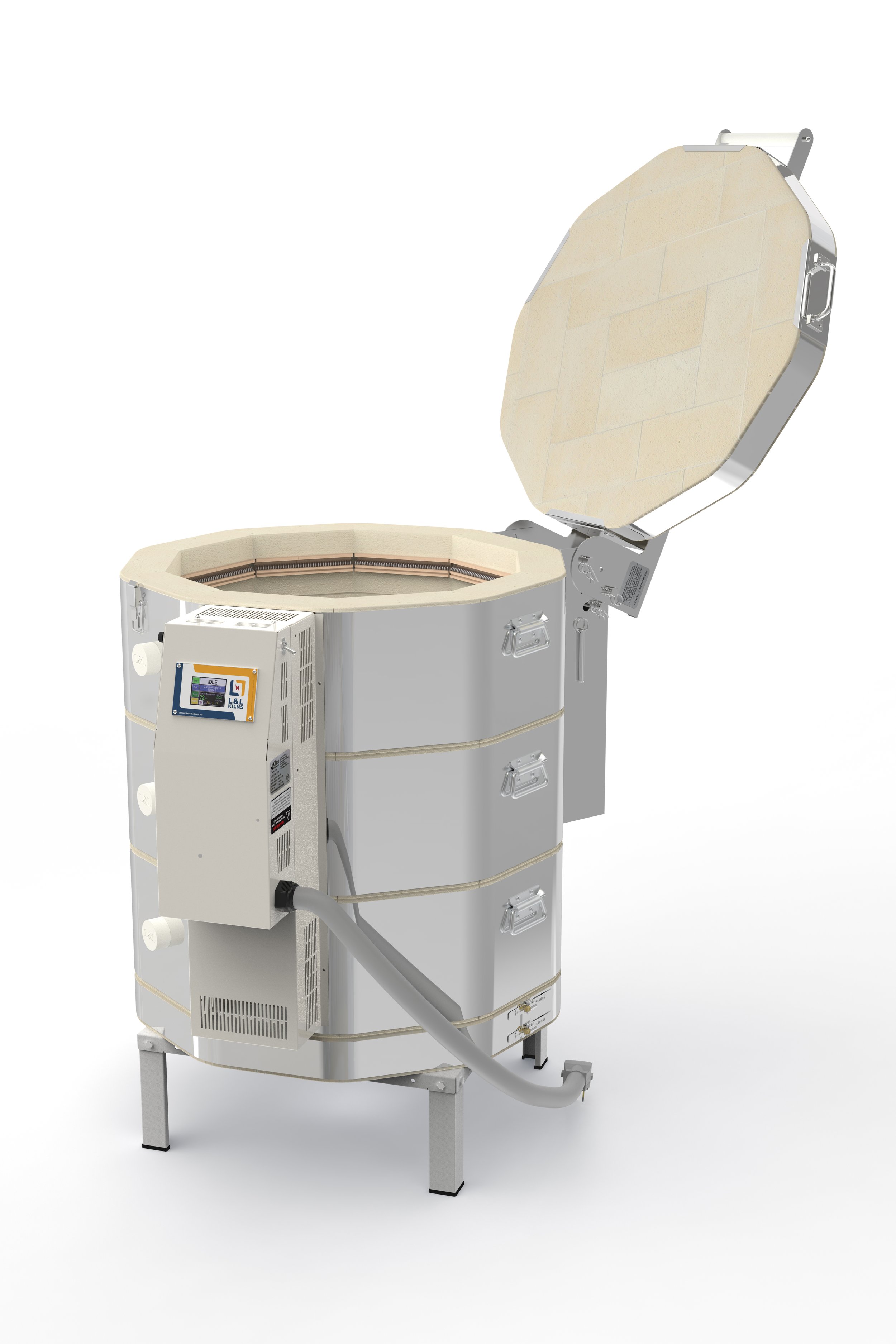

SM23-T-3-A School Kiln - L&L Kilns
Low-Fire School Kiln
KEY SPECS
Medium (10.2 cubit feet)
Genesis Multi-Zone Touchscreen Control
Cone 10, 2080F, 1140C
Recommended for K-12 Schools
$5,125*
ESTIMATED LEAD TIME: 10 to 12 Weeks
Works on all voltages: 208 - 240
Low-Fire: Designed for K-12
Easy-open control panel
Hard ceramic element channels
Protected thermocouple
Easy-lift hinge
Popular 6.7 Cubic Feet
Power cord
Five-Year Warranty
*Taxes and freight will be added to this cost. Please contact us for final pricing.
DETAILS
Insulation: 3" K23 Firebrick
Sections: Three 9” high sections
Inside Dimensions: 22.30" Diameter x 27.00" High (56.642 cm Diameter x 68.58 cm High)
Outside Dimensions: 30.00" Wide x 40.00" Deep x 68.00" High (76.2 cm Wide x 101.6 cm Deep x 172.72 cm High)
Weight: 320 lbs (145 kg)
SPECIFICATIONS
CONTACT US
Have a quick question? Contact us directly and we’ll get back to you shortly.
ORDERING
We want to ensure you get the correct kiln. We will contact you directly to confirm your order details. The final price, including taxes and freight, will be calculated. The order will not be confirmed until payment is recieved in full.
FEATURES
Angled Control Panel
EASY TO SEE AND PROGRAM THE CONTROL. Angled control panel makes viewing control and programming easier.
Genesis Touch-screen Controller
The Genesis Touch-screen features Dynamic Zone Control. It is like having three controls in one. The Genesis Touch-screen separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three separate heating zones even as the kiln is heating up. Kiln temperatures are automatically evened out to within 1/2 cone or better top to bottom. There is no manual intervention with input switches. There are separate thermocouples (heat sensors) and contactors (power controls) for each of the three zones. You have the ability to adjust the "lag" or differential between zones, (anywhere from 5 degrees to 99 degrees).
L&L Ceramic Element Holders
L&L Kiln's patented hard ceramic element holders protect your kiln. The ceramic element holder protects the soft fragile firebrick. Replacing elements repeatedly does not damage the brick. Elements don't sag or fall out of broken grooves. You do not need metal pins to hold elements into broken grooves. Customers often say their L&L kilns look new after 30 years of hard use!
OPTIONAL ADD-ONS
Rolling Kiln Stand
L&L's rolling kiln stand features heavy gauge (14 ga) galvannealed steel construction with multiple bends for extra strength, steel swivel locking casters, integrated vent collection box support, and guide rails for the kiln. Each size is fitted to the kiln. Important special caution plates are riveted to three sides of the stand. The vent collection box is not included but, when you order a Vent-Sure vent system the longer duct is included with the system.
Optional Vent-Sure Control
The vent control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the Genesis Touch-screen or Genesis.
Optional Shelf Kit Includes:
Part Number: H-E-K23T/3H
Includes: Eight 20" Half Round Shelves (3/4" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves
Price: $675.00
Optional Quad Elements
Estimated Lead Time of 10-12 Weeks
The Quad element system provides four wraps of elements in one 9" high section. When we couple this with our superior element holder that transmits heat and the fact that our element outside diameter is almost a full 1/2" - this is the best element on the market in top-loading kilns.
This is a Special Order option, please call for pricing.
